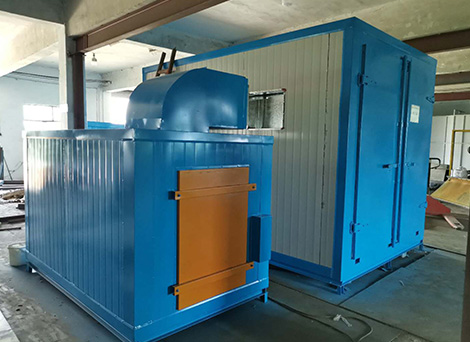

How To Build A Powder Coating Oven​

Are you looking to enhance your powder coating process? One essential component is a reliable powder coating oven. Building your own powder coat oven can save you money and ensure you have a setup that meets your specific needs. In this article, we will guide you through the steps of building a powder coating oven and provide tips to optimize its performance.

1. Materials Needed for Building a Powder Coat Oven

To start, gather the following materials:

Metal Sheets: For the oven body, use steel or aluminum for durability and heat retention.

Insulation Material: High-temperature insulation (such as ceramic or fiberglass) to prevent heat loss.

Heating Elements: Electric heating elements are recommended for precise temperature control.

Thermostat: For monitoring and regulating the oven temperature.

Fan: To ensure even airflow and heat distribution.

Temperature Controller: For accurate temperature management.

Sealant: High-temperature sealant to prevent heat leakage.

2. Step-by-Step Guide to Building Your Powder Coating Oven

Design the Oven: Determine the size of your oven based on the items you plan to coat. A simple rectangular design often works best.

Construct the Oven Body:

Cut metal sheets to create the oven walls, top, and bottom.

Assemble the frame using bolts or welds for strength.

Insulate the Oven: Line the interior walls with insulation material. This will help maintain consistent temperatures and reduce energy costs.

Install Heating Elements: Position the heating elements inside the oven. Ensure they are evenly spaced to promote uniform heating.

Set Up Airflow: Install a fan inside the oven to circulate air. Proper airflow is crucial for even coating and curing.

Install Thermostat and Temperature Controller: Connect the thermostat and temperature controller to the heating elements. This setup allows you to maintain the desired curing temperature.

Seal the Oven: Use high-temperature sealant around the door and any seams to prevent heat loss and improve efficiency.

Test the Oven: Before using the oven for actual coating, conduct a test run. Monitor the temperature to ensure it reaches and maintains the desired level.

3. Tips for Optimizing Your Powder Coating Oven

Use Quality Components: Invest in high-quality heating elements and insulation for better performance.

Maintain Regular Maintenance: Periodically check and maintain your oven to ensure optimal operation.

Experiment with Temperature Settings: Depending on the type of powder coat you use, you may need to adjust the curing temperature and time for the best results.

4. Conclusion

Building a powder coating oven is a worthwhile investment for anyone serious about powder coating. With careful planning and execution, you can create an efficient and effective oven tailored to your needs. By following this guide on how to build a powder coating oven, you will enhance your powder coating process, resulting in better finishes and increased productivity.

If you have any questions or need further assistance, feel free to reach out Huaxiang!
